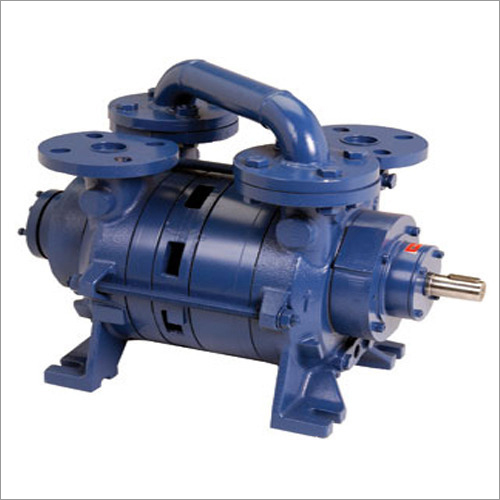

Water Ring Vacuum Pump

Name: Water Ring Vacuum Pump
Brand: TULSI PUMPS & SYSTEM
Price: 20000 INR
Availability: InStock

Price 20000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Water Ring Vacuum Pump Specification

Flow Rate
70 m/h 2000 m/h

Inlet/Outlet
Flanged

Caliber
DN32DN150

Discharge Pressure
Up to 1 Bar

Frequency
50 Hz / 60 Hz

Voltage
380V / 415V

Noise Level
Below 75 dB

Speed
1440 rpm / 2900 rpm

Theory
Water Ring

Head Size
Customizable

Max Suction
700 mm Hg

Control System
Manual/PLC compatible

Features
Corrosion-resistant, Low Maintenance, High Efficiency, Non-Clogging

Working Temperature
Up to 80C

Mounting Type
Baseplate Mounted

Material
Cast Iron / Stainless Steel

Structure
Single Suction

Power
3 kW 90 kW

Standard
DIN / ISO

Fuel Type
Electric

Pressure
Up to 33 mbar

Usage
Industrial Vacuum Applications

Application
Chemical, Pharmaceutical, Food, Processing, Paper, Textile, Sugar, Power Plant, Plastic, Mining

Suction Type
Single / Double Stage

Seals Type
Mechanical Seal

Priming
Self-priming

Pump Type
Liquid Ring Vacuum Pump

Capacity
Up to 2000 m/h

Installation Position
Horizontal

Impeller Type
Closed / Semi-open

Lubrication
Grease Lubricated

Rotating Direction
Clockwise (as standard)

Cooling System
Water-cooled

Protection Class
IP55

Connection Type
Threaded / Flanged

Water Ring Vacuum Pump Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
4 Pieces Per Day

Delivery Time
1-7 Days

About Water Ring Vacuum Pump

Water Ring Vacuum Pump is widely used in food, medicine, textile and chemical industry. Manufacturing of the provided range is done while using excellent quality raw materials, most updated machines and innovative technology in adherence with set industrial quality standards at our well developed processing unit. It is easy to install, convenient to disassemble, require less maintenance and provide long service life. Moreover, this Water Ring Vacuum Pump is made available in various technical specifications at reasonable rates.

Specification

Maximum Vacuum	710 mm of Hg (G)
Power Consumption	1 - 7.5 HP
Suction Capacity	20 m3/hr to 2200 m3/hr.
Number of Stages	Single stage
Material	Cast Iron
Usage/Application	Industrial
Brand	Tulsi

Efficient Industrial Vacuum Solution

Our Water Ring Vacuum Pump with Cooling System ensures high vacuum performance with low operational noise and superior corrosion resistance. It is designed for demanding industrial sectors, delivering a flow rate of up to 2000 m3/h. The self-priming function, along with flexible options such as closed or semi-open impellers and single or double stage variants, makes this pump a versatile solution across various industries. Its horizontal, baseplate-mounted design suits both new installations and replacements.

Adaptable, Robust Construction

Available in cast iron or stainless steel, the pump can withstand harsh working environments. Robust mechanical seals prevent leakages, while the grease-lubricated bearings and water-cooling provide reliability and longevity. The selectable flange sizes (DN32-DN150) and compliance with DIN/ISO standards assure compatibility and seamless integration in industrial setups.

FAQ's of Water Ring Vacuum Pump:

Q: How does the water-cooling system enhance the performance of the vacuum pump?

A: The water-cooling system efficiently dissipates heat generated during operation, maintaining optimal temperature levels and allowing the pump to operate at temperatures up to 80C. This not only protects internal components but also ensures consistent vacuum performance during continuous industrial use.

Q: What industries can benefit from using this Water Ring Vacuum Pump?

A: Industries such as chemical processing, pharmaceuticals, food and beverage, textile, paper, power generation, plastics, mining, and sugar manufacturing can all benefit from the pump. Its high efficiency, corrosion resistance, and non-clogging design make it suitable for demanding and continuous processes.

Q: Where should this vacuum pump be installed for optimal operation?

A: It is designed for horizontal installation on a solid baseplate. Proper installation close to the process area, with correct alignment and secure mounting, ensures vibration-free operation and maximized efficiency. It can also be easily integrated with existing pipeline infrastructure due to threaded or flanged connections.

Q: What is the maximum flow rate and suction capability of this pump?

A: The pump offers flow rates ranging from 70 m3/h to 2000 m3/h and can achieve a maximum suction of 700 mm Hg. These specifications enable it to handle a wide range of vacuum applications efficiently.

Q: How does the self-priming feature benefit users in industrial environments?

A: Self-priming capability allows the pump to automatically evacuate air from the suction line, making it highly effective during startup and in operations that require handling intermittent or interrupted liquid flows. This reduces the need for manual intervention and ensures dependable vacuum creation.

Q: What are the key advantages of the pump's mechanical seal and grease lubrication?

A: The mechanical seal minimizes leakage for better efficiency and lower maintenance, while grease-lubricated bearings provide smooth, consistent operation and extended service life. Together, these features enhance reliability and reduce downtime in tough industrial conditions.
