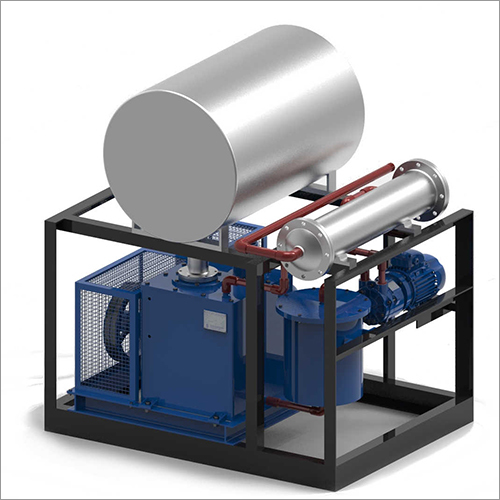

Oil Sealed Vacuum Pump

Name: Oil Sealed Vacuum Pump
Brand: TULSI PUMPS & SYSTEM
Price: 12000 INR
Availability: InStock

Price 12000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Oil Sealed Vacuum Pump Specification

Max Suction
0.1 mbar

Working Temperature
5C to 40C

Noise Level
68 dB

Fuel Tank Capacity
Depends on model

Head Size
Customizable

Mounting Type
Base Mounted

Discharge Pressure
Atmospheric

Caliber
DN25 DN80

Flow Rate
10 - 800 m/h

Features
Low maintenance, durable, high ultimate vacuum

Voltage
220V / 380V

Speed
1400 rpm / 1700 rpm

Inlet/Outlet
Threaded / Flanged

Control System
Manual / Optional Automatic

Frequency
50 Hz / 60 Hz

Theory
Rotary Vane

Material
Cast Iron / Stainless Steel

Structure
Compact Horizontal

Power
0.75 kW 15 kW

Standard
ISO 9001 Certified

Fuel Type
Oil Lubricated

Pressure
0.1 mbar (Ultimate Vacuum)

Usage
Industrial Vacuum Generation

Application
Packaging, Electronics, Chemical, Laboratory

Suction Type
Single or Double Stage

Seals Type
Mechanical Seal

Priming
Self-Priming

Pump Type
Oil Sealed Rotary Pump

Capacity
10 800 m/h

Dimensions
Custom model specific

Exhaust Filter
Integrated

Weight
35 450 kg (model dependent)

Vacuum Gauge
Analog / Digital Available

Motor Protection
IP55

Service Life
Up to 25,000 hours (with maintenance)

Cooling Type
Air / Water Cooled

Lubrication Method
Forced Oil Circulation

Oil Capacity
2 30 liters (model dependent)

Oil Sealed Vacuum Pump Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
4 Pieces Per Day

Delivery Time
1-7 Days

About Oil Sealed Vacuum Pump

Oil Sealed Vacuum Pump is ideal for Vacuum packing, vacuum distillation, vacuum impregnation and drying. It offer heavy duty cycle and can operate for longer duration under tough conditions. The oil also helps in preventing the air supply, thus creating vacuum to offer reliable operation. Additionally, this Oil Sealed Vacuum Pump is offered in many specifications at most competitive prices.

Specification

Hose Power	1-3 HP
Number of Stages	Single stage
Material	Cast Iron
Brand	Tulsi
Power	0.37 kW

Reliable Performance and Versatility

Engineered with rotary vane theory, each model ensures superior vacuum generation for demanding applications. Materials like cast iron and stainless steel promote durability, while customizable head size, caliber, and control systems make these pumps adaptable to varied industrial sectors including packaging, electronics, chemical, and labs.

Advanced Features and Low Maintenance

With forced oil circulation and integrated exhaust filters, our pumps guarantee efficient operation with minimal maintenance needs. The robust construction supports extended service life, while IP55 motor protection and adjustable cooling options (air/water) enhance safety and versatility.

FAQ's of Oil Sealed Vacuum Pump:

Q: How does the oil sealed rotary vane vacuum pump achieve a high ultimate vacuum?

A: The pump utilizes a rotary vane mechanism with forced oil circulation, which creates an airtight seal and lubricates moving parts, enabling it to achieve an ultimate vacuum as low as 0.1 mbar. Integrated exhaust filters help maintain system cleanliness and consistent performance.

Q: What type of industries can benefit from using this vacuum pump?

A: This vacuum pump is ideal for industries such as packaging, electronics, chemical processing, and laboratories. Its robust construction, customizable options, and reliable vacuum generation make it suitable for environments requiring stable, high-performance vacuum solutions.

Q: When should routine maintenance be performed on the vacuum pump?

A: Routine maintenance, such as oil changes and filter replacements, should be conducted according to the manufacturer's recommendations. Adhering to regular maintenance schedules ensures pumps can reach up to 25,000 hours of service life and maintain optimal efficiency.

Q: Where can the pump be installed and how is it mounted?

A: The pump is designed for base mounting and should be installed in an environment with appropriate ventilation and temperature control (5C to 40C). Mounting should adhere to the model-specific guidelines for weight and dimensions.

Q: What are the main advantages of forced oil circulation lubrication?

A: Forced oil circulation provides constant lubrication to the internal moving parts, reducing wear, enhancing sealing, and improving heat dissipation. This results in a longer service life, more stable vacuum performance, and lower maintenance needs.

Q: How is the vacuum level monitored on this pump?

A: Users can monitor the vacuum level via analog or digital vacuum gauges, which are available for all models. This ensures precise control and monitoring during operation.

Q: What process controls are available with these vacuum pumps?

A: Pumps can be supplied with a manual control system or an optional automatic control panel, allowing for integration with various industrial processes and enhancing operational flexibility.
